Liliequist membrane

Last edited and medically reviewed by on

The Liliequist membrane is a membrane of the Arachnoid mater and represents an important intraoperative anatomical landmark in certain neurosurgical procedures.

Anatomy

Anatomically, the Liliequist membrane consists of two layers that arise together from the Dorsum sellae and then divide into a diencephalic part and a mesencephalic part. In 75 % of cases, the diencephalic layer inserts at the anterior margin of the Mammillary bodies[^1]. The mesencephalic part of the Liliequist membrane inserts directly anterior to the apex of the Basilar artery[^1] [^2].

Figure

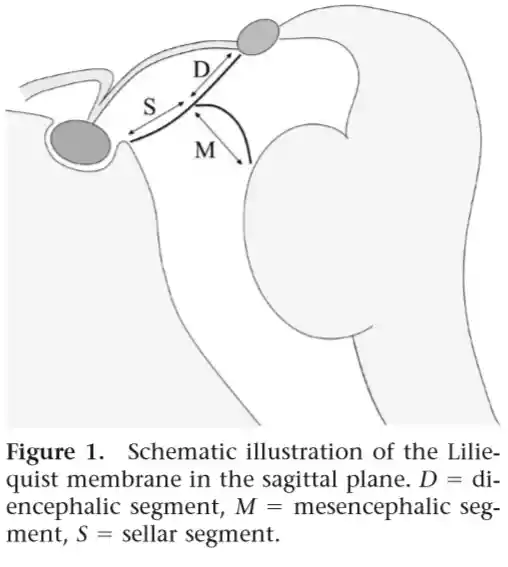

Liliequist membrane schematic
Schematic illustration of the Liliequist membrane showing its various components. Adapted from Fushimi et al.

Imaging

The Liliequist membrane can often be visualized on MRI imaging.

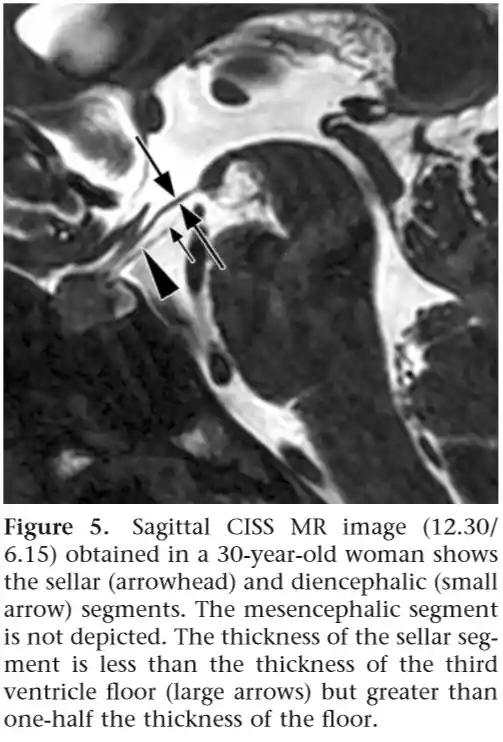

Liliequist membrane MRI
MRI CISS sequences of the Liliequist membrane. Figure adapted from Fushimi et al.

Clinical relevance

During an endoscopic Endoscopic third ventriculostomy, if a Liliequist membrane is present, it should also be opened to achieve an optimal stoma[^3].
